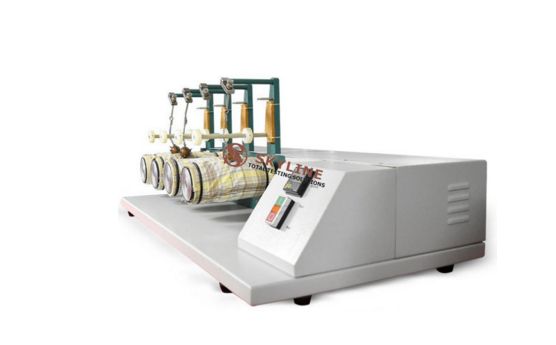

SL-F34 Nail Hammer Hook Performance Tester
SL-F34 Nail Hammer Hook Performance Tester
SL-F34 Nail Hammer Hook Performance Tester

SL-F34 Nail Hammer Hook Performance Tester

Product Model : SL-F34
It is used for the anti-hook performance test of knitted fabrics and other easy-to-hook fabrics.
Detailed description

SL-F34 Nail Hammer Hook Performance Tester


Application
It is used for the anti-hook performance test of knitted fabrics and other easy-to-hook fabrics.


Standard

ASTM D3939


Technical parameters

 Number of stations  4 stations
 Rotating speed  60±2r/min
 Counting range  0~99999
 The diameter of the drum  Φ82mm; width 210mm
 The quality of the hammer  160 ± 10g
 The number of nails implanted  11
 Needle nail exposed length  10mm; tip radius R0.13mm
 Felt thickness  3 ~ 3.2mm; width 165mm
 The working width of the guide rod  125mm
 Distance between nail hammer and guide rod  45mm
 Power Supply  AC220V, 50Hz, 200W
 The external dimensions  630 × 450 × 650 mm
 Weight  60kg
