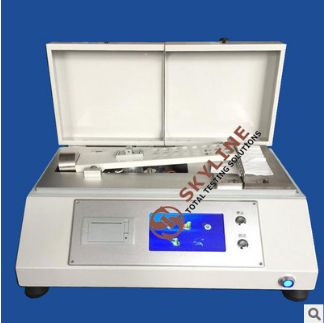

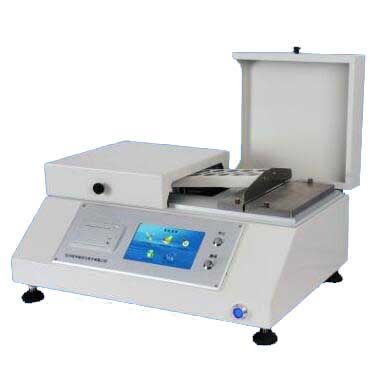

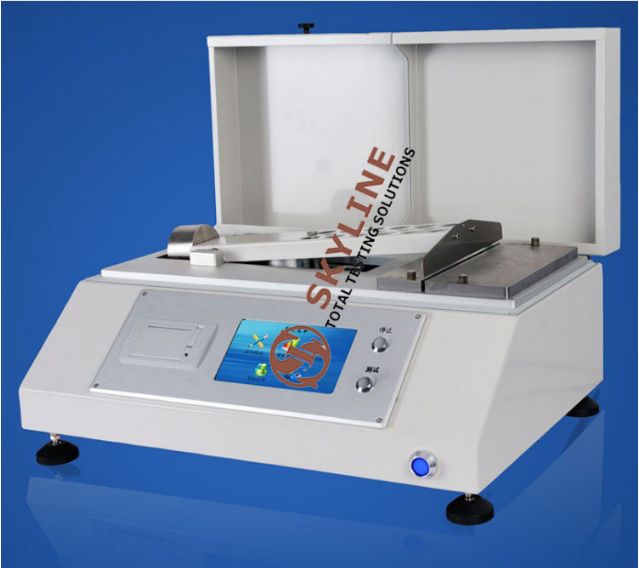

Paper Softness Tester
Paper Softness Tester
Paper Softness Tester
Paper Softness Tester

Paper Softness Tester

Product Model : SL-P22
The paper softness tester is a test instrument that simulates the softness of the hand.
Detailed description

Paper Softness Tester


Product use overview
The paper softness tester is a test instrument that simulates the softness of the hand.
It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness".
It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics. Instrument test system
Using digital control technology controlled by microcomputer, using humanized touch screen display, operation interface, Chinese and English bilingual luxury operating system, realized
The man-machine dialogue function has the advantages of advanced technology, complete functions, reliable performance and easy operation. It is a papermaking, scientific research and quality inspection industry.
Ideal experimental equipment for the department.


Technical Parameters

 Measuring range  (10 ~ 1000) mN
 Test speed  1.2mm/s
 Measurement time  15s
 Resolution  1mN
 Accuracy  ±1%
 Probe penetration depth  8 +0.5mm
 Sample platform narrow width  5mm, 6.35mm, 10mm, 20mm
 Parallelism error on both sides of the sample table slit  ≤0.05mm
 Display  Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours
 Power supply  AC 220V ± 22V, 50Hz
 Transport packaging  outer box (wooden box), inside the box (buffer material)
