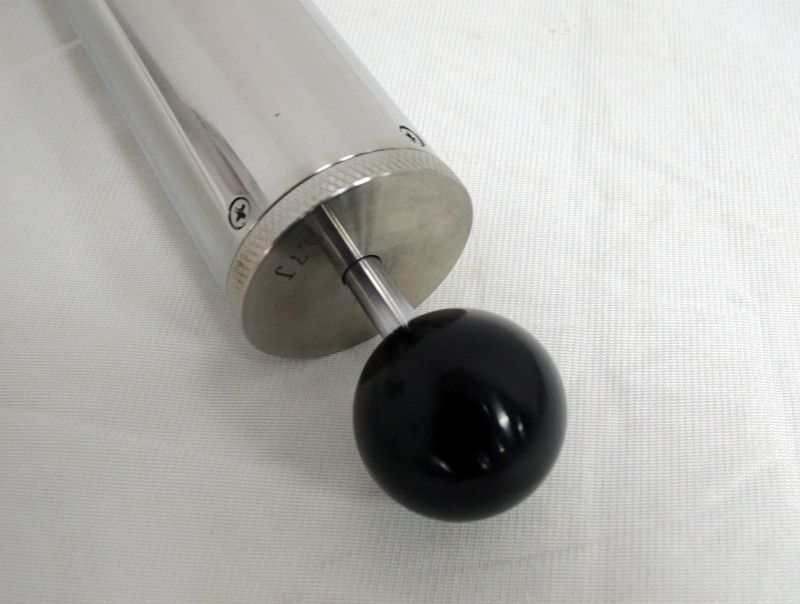

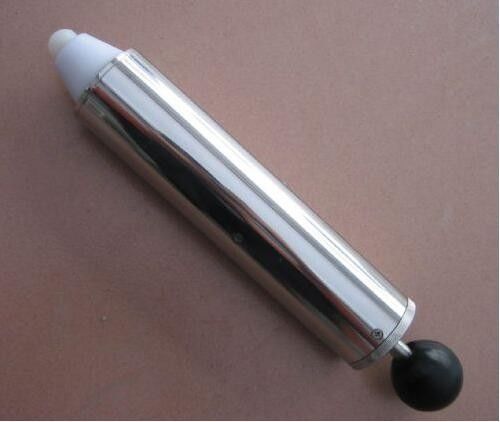

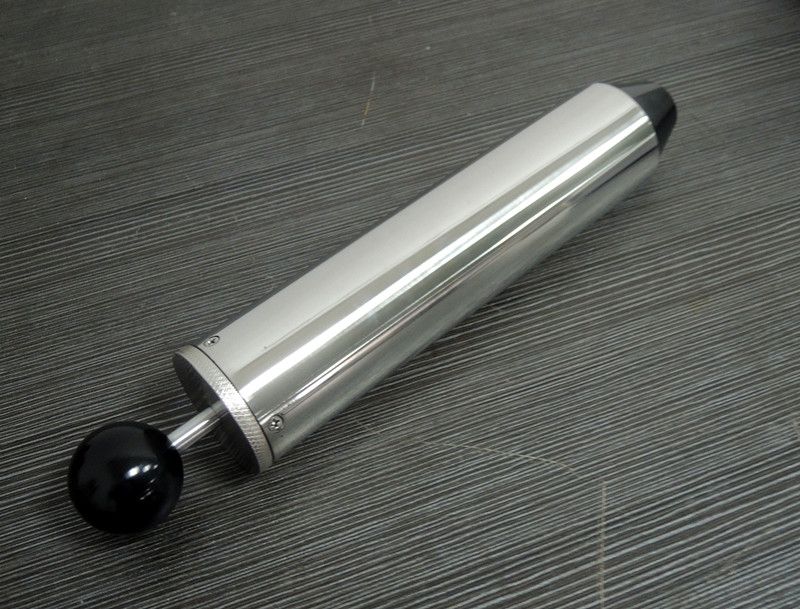

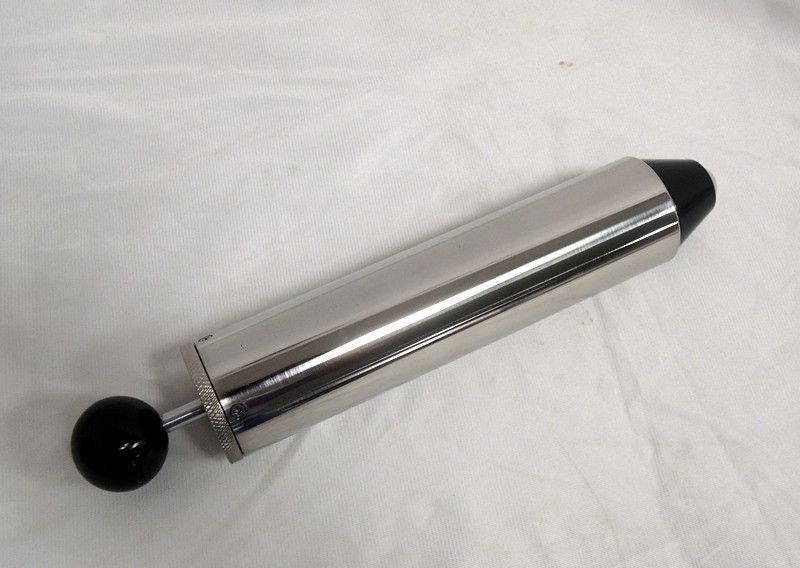

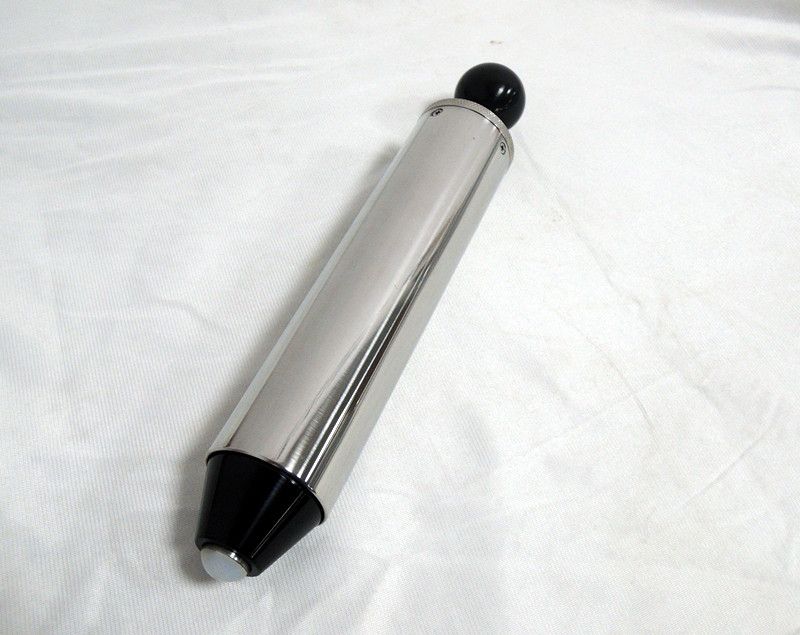

SL-SE02 Spring Impac Test Hammer

Product Model : SL-SE02
This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks.
Detailed description

Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Test Hammer



Product Introductions

This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



Standards

It is strictly designed according to IEC60068-2-75 standard,but not limited to these standards.



Applications

This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



After applying the impact with the hammer, the products is examined with accessibility probes to determine access to shock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.



Type


Impact Energy(J)
Tolerance Mistake
Spring Impact Energy

0.14
0.014
Spring Impact Energy
0.20
0.02
Spring Impact Energy
0.35
0.03
Spring Impact Energy
0.50
0.04
Spring Impact Energy



0.70
0.05
Spring Impact Energy
1.00
0.05
Spring Impact Energy
2.00
0.10
Universal Energy
0.14
1.00


Technical parameters

 length  211mm
 weight  1250g
 OD  50 mm
 Hammer Weight  60g
 Hammer radius  10mm
 Impact Components  including the hit ball handle the hammer,weight 250g, hammer head is made from white polyethylene imine first
 The release force of impact  <10N
