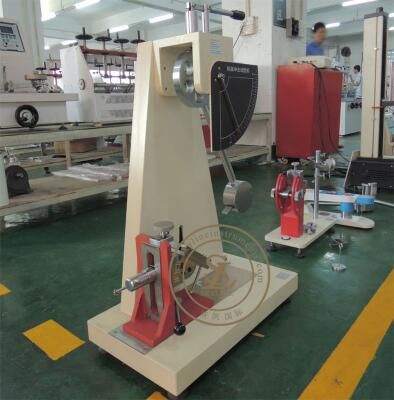

SL-L16 Heel Impact Test Machine
Product information
Heel continuous impact test machine is used to determine the endurance of heels of ladies’ shoes to receive the occasional
heavy blows during wear. A heel clamped with the tip uppermost and the stem approximately vertical is subjected to
repeated blows by a pendulum striker. The energy of the blows increases successively until the heel fails.
Technical parameters
| Capacity | 0~18.3J(13.5ft-lb ),minimum reading 0.68J(0.5ft-lb ) |
| Horizontally Holding Moment of Pendutum | 17.3N~m(12.7ft-lb ) |
| Adjustable Range of Base Clamp | (H )~25mm,angle 0~45degree |
| Dimension | 65 ×41×115cm |
| Weight | 100kg |
| Standards | BS-5131 ISO 19953 QB/T 2863 SATRA TM20 |
What is the purpose of the Heel Impact Test Machine?
The purpose of this tester is to reproduce the heel shock associated with walking. In this way, by analyzing the number of impacts to break or separate the heel, we can predict the impact resistance of the heel and/or its parts. The test consists of subjecting the heel to a pendulum impact tester to check whether the resistance of the heel or heel attachment is satisfactory.
