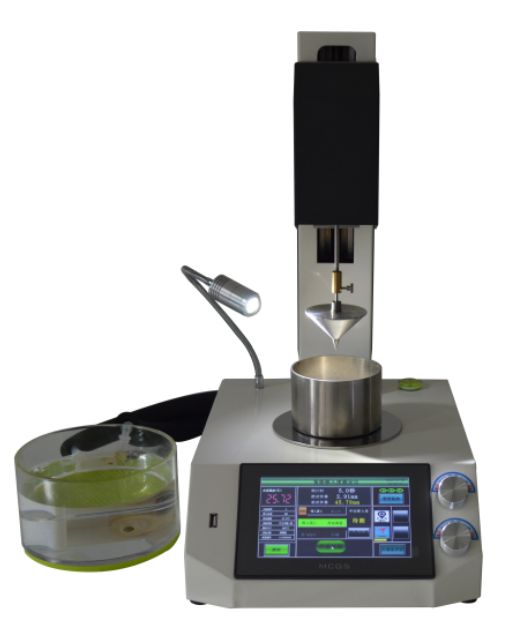

SL-OA69 Grease Intelligent Cone Penetration Tester

Order number

Technical parameter

Qualification

1

Measuring range

0-620 penetration

2

Thermostatic waterbath

1. Temperature range]0.00~99.99℃;

2. Temperature control range: Low temperature: 20℃ below ambient temperature; High temperature: 60.00℃.

3. Display resolution: 0.01℃;

4. Temperature control accuracy: ≤±0.5℃;

3

Time control

1. Time display and control: 0-60 seconds (settable);

2. Display resolution: 0.1 seconds

3. Time control accuracy: ≤±0.1 seconds.

4

Displacement

The high precision LVDT displacement sensor is used, and the structure is split, and there is no friction when the cone rod drops.

1. [Range]0-640mm;

2. Display resolution: 0.01mm (0.1 cone penetration);

3. [Relative displacement accuracy] ≤±0.1mm;

5

Storage data

200 groups

6

Slide component

The total mass of the full-size component is 150±0.05g.

Full size cone mass 102.5±0.05g, cone rod mass 47.5±0.05g;

Complies with the requirements of GB/T 269-91 standard.

7

Outline dimension

390mm × 310mm × 575mm (length × width × height);

8

Working power supply

220±10%VAC/50Hz；

9

Total power

350W；

10

Net weight

12.5Kg；
