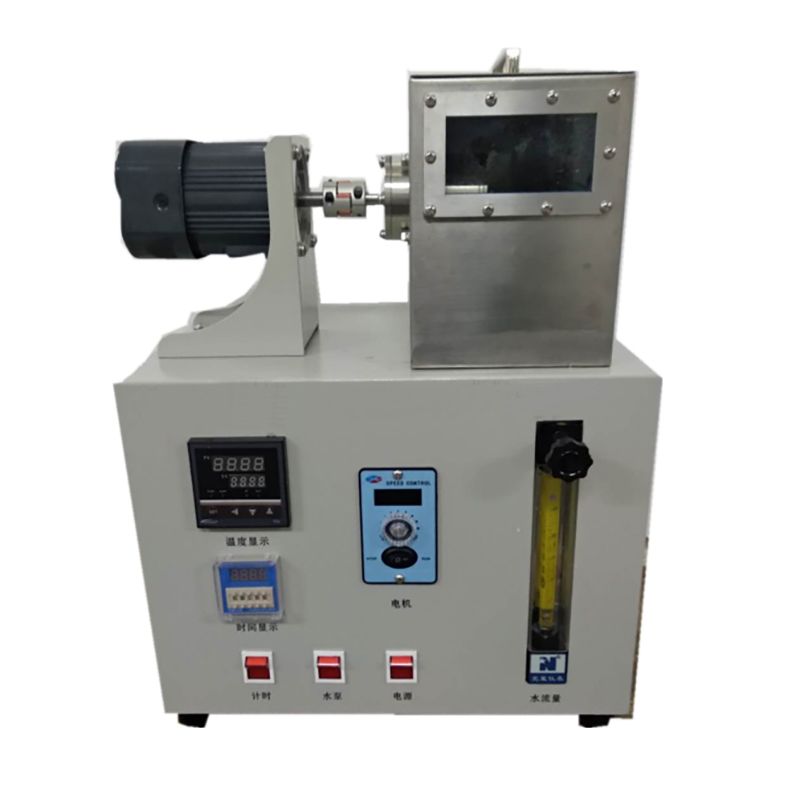

SL-OA109 Lubricating Grease Anti-Water Wash Performance Tester

Machine Introduction

The instrument operates by loading a grease sample into a ball bearing, which is then installed in a bearing sleeve with specified clearance requirements. The assembly is rotated at 600 rpm ± 30 rpm. Water, maintained at either 38°C or 79°C, is sprayed into the bearing sleeve at a flow rate of 5 mL/s ± 0.5 mL/s. The water wash-off capacity of the grease sample is determined by the amount of grease washed away within 60 minutes.

Scope of application: Used to evaluate the water resistance of grease under specified temperature conditions.

Technical Parameter

Input voltage: AC220V±10% 50 Hz

Heating power: 250W

Control temperature range: room temperature to 100℃

Control temperature point: 38℃ 79℃

Temperature control accuracy: ±2℃

Dimensions: 250×280×380mm

Test Standard

Applicable standards: SH/T0109, ASTM D1264
